Seal strips, crafted predominantly from polymers and elastomers through extrusion molding, exhibit a myriad of shapes in the market. This diversity is purposeful, tailored to the specific requirements of various industries and applications. Those perusing our product catalog gain insights into an array of refined rubber solutions.
This exposition will concentrate solely on the most prevalent and widely adopted applications of seal strips, shedding light on the distinctive purpose each shape serves. It is pertinent to note that clicking on the attached link next to each seal strip shape name directly navigates you to the product's profile.
The extensive range of seal strip shapes aligns with the vast applications they serve, renowned for their effectiveness in dampening noise, reducing vibration, sealing gaps around doors and windows, and safeguarding against contaminants.
We have provided comprehensive coverage of seal shapes for a wide range of sealing applications in various infrastructures. Jinhui rubber offers meticulously designed seal strips that are specifically tailored for diverse needs, from garage doors and windows to automobile windshields and panes. The utilization of specially formulated plastic and rubber compounds ensures exceptional durability and long-lasting protection for each product. The following list will elaborate on the twelve most sought-after seal strip shapes.

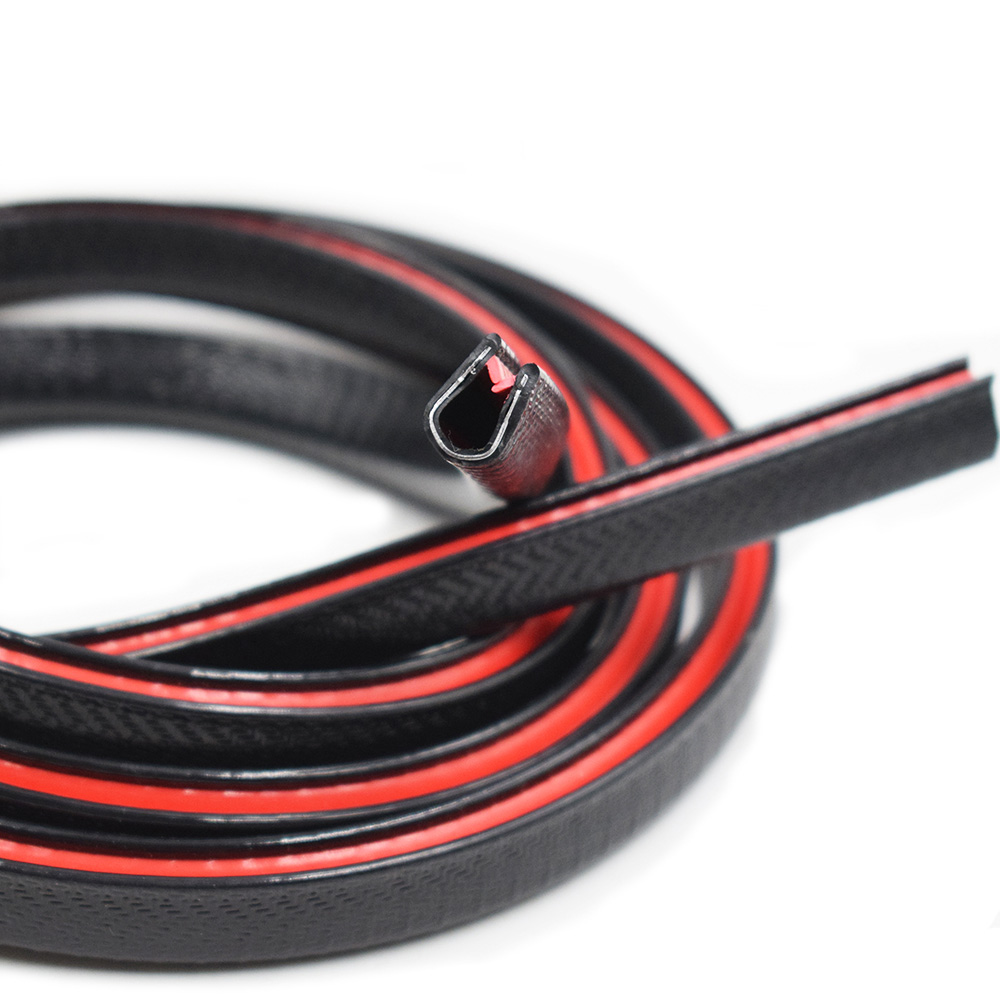

This variant of seal strip exhibits a cross-sectional resemblance to the English letter "U." Multiple iterations of U shape seal strips are available, each tailored to specific needs. These encompass diverse types such as channel seals, section strips, solid seals, silicone rubber seals, and channel weather stripping, among others.
Advantages:
Applications:
U shape seal strips have found prominence in various industries, including the medical sector, scientific research, and food processing. Their versatility extends to weatherstripping applications in cabinets and apartments. Furthermore, these seal strips are widely applied in diverse settings, encompassing optical fiber cables, electrical components, and hydraulic tanks, among other applications.

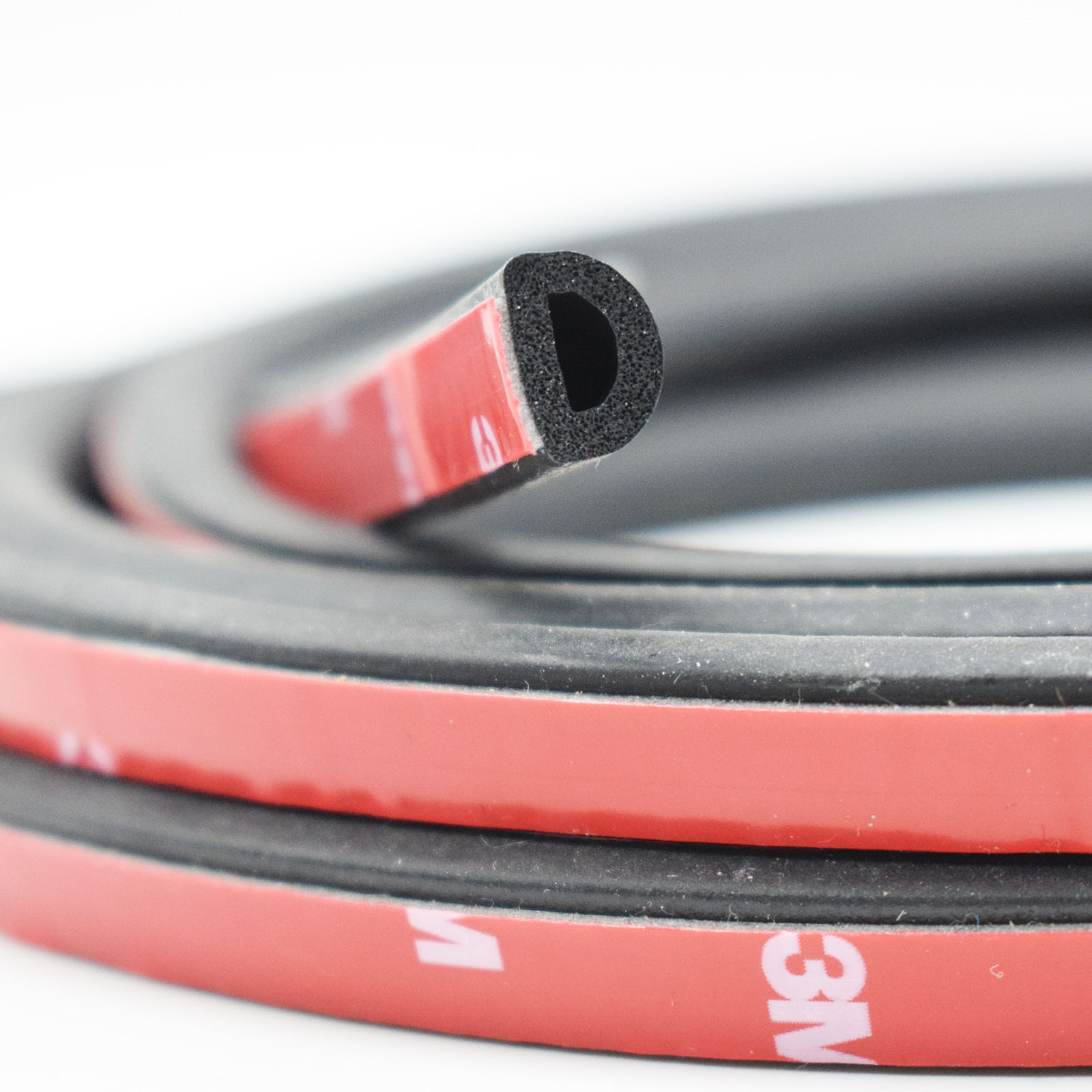

The D shape seal strip, renowned as one of the most favored weather stripping options across various applications, boasts a distinctive structure. Typically, it features a half-moon bulb along with a flat bottom. The resilience of the half-moon bulb enables it to withstand high pressure, while the adhesive-infused flat bottom ensures secure and adhesive attachment. D shaped seal strips commonly utilize sponge rubber materials, providing superior sealing capabilities, especially under pressure.
Advantages:
Applications:
Commonly employed in mobile equipment cabins, machine enclosures, door edges, window seals, automotive seals, and hydraulic equipment.

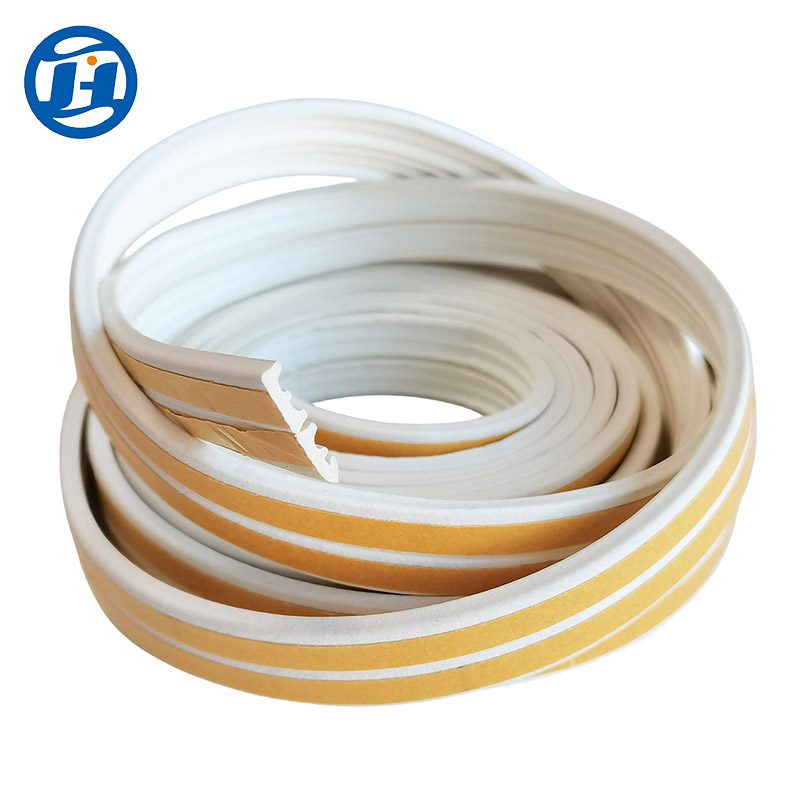

E shaped seal strips usually resemble the small English letter ‘e’ at the cross-sectional area. Like D shape seal strips, the half-moon part of the E shape seal supports high compression. The flat bottom helps in attachment with the projected application surface. E shape seal strips usually come as extruded silicone rubber for a channel, section strips, and weatherstripping.
Advantages:
Applications:
Popular in food processing, automotive, high-voltage insulation, and cabinet door seals.

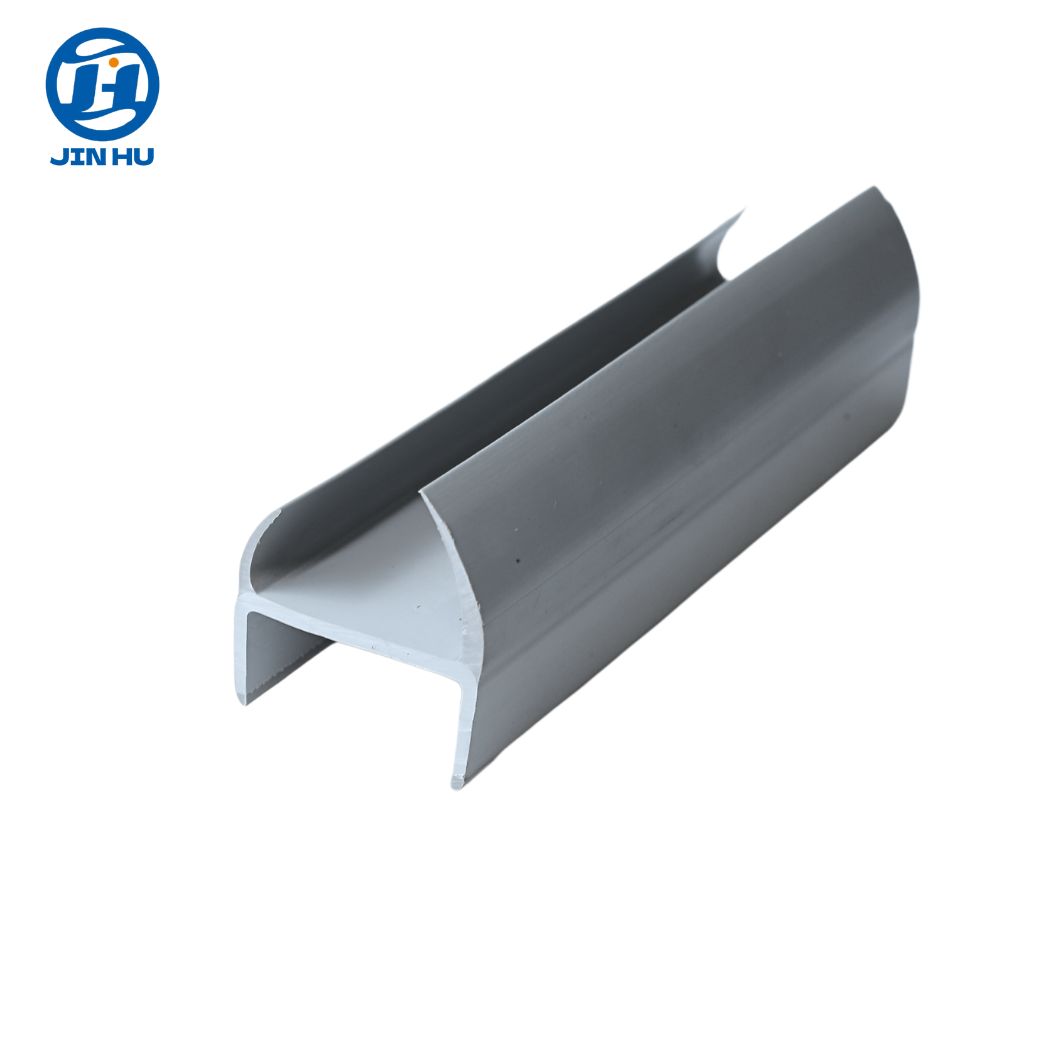

This seal shape usually includes H shape silicone rubber seals, H rubber channel seals, and H shape section rubber seals. This seal strip type is traditionally used for high-temperature resistance ranging from -65°F to +400 °F.
Advantages:
Applications:
H shape seal strips are prevalent in various applications such as rail, aerospace, and civil engineering. Besides, it is also widely used in food, dairy, and HVAC applications. Moreover, H shape seal strips are also used in sound and heat insulation.

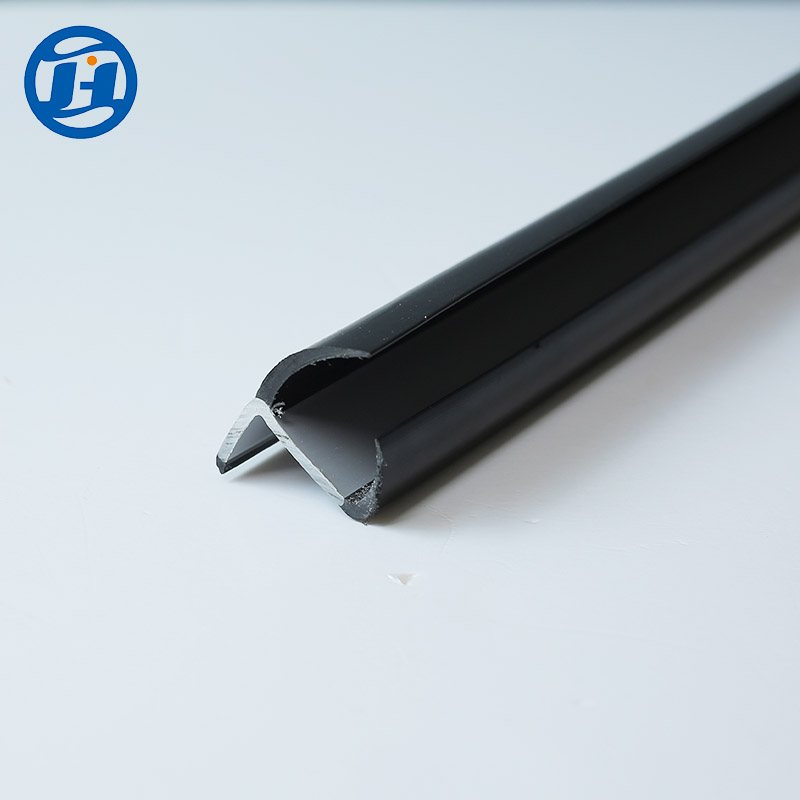

This seal shape comes in different forms, such as a J-shaped strip with thin and thick walls, flat and curved. Like other shapes, J shape seal strips also have diversity in selecting and matching varied materials and colors.
Advantages:
Applications:
J shape seal strips are popular in industries where temperature, ozone, electricity, and fungus are concerned. Moreover, these seal strips provide great flexibility and are perfect for electric insulation. Other applications include automobile weather protection, ship container sealing, marine, and aerospace.
This type of seal shape has a solid oval shape at the cross-section. The typical materials for this type of seal strip are EPDM, silicone rubber, and other elastomers. These materials are highly versatile and provide excellent sealing capabilities. Because of its tangible properties, it can withstand high compression pressure. The typical hardness of this type of seal strip is from 20 shore A to 80 shore A. Shore is a unit of the hardness of a material.
Advantages:
Applications:
This type of seal strip is widely popular in chemical industries. Besides, oval shape seal strips are also prevalent in hydraulic systems, electrical cabinets, etc.

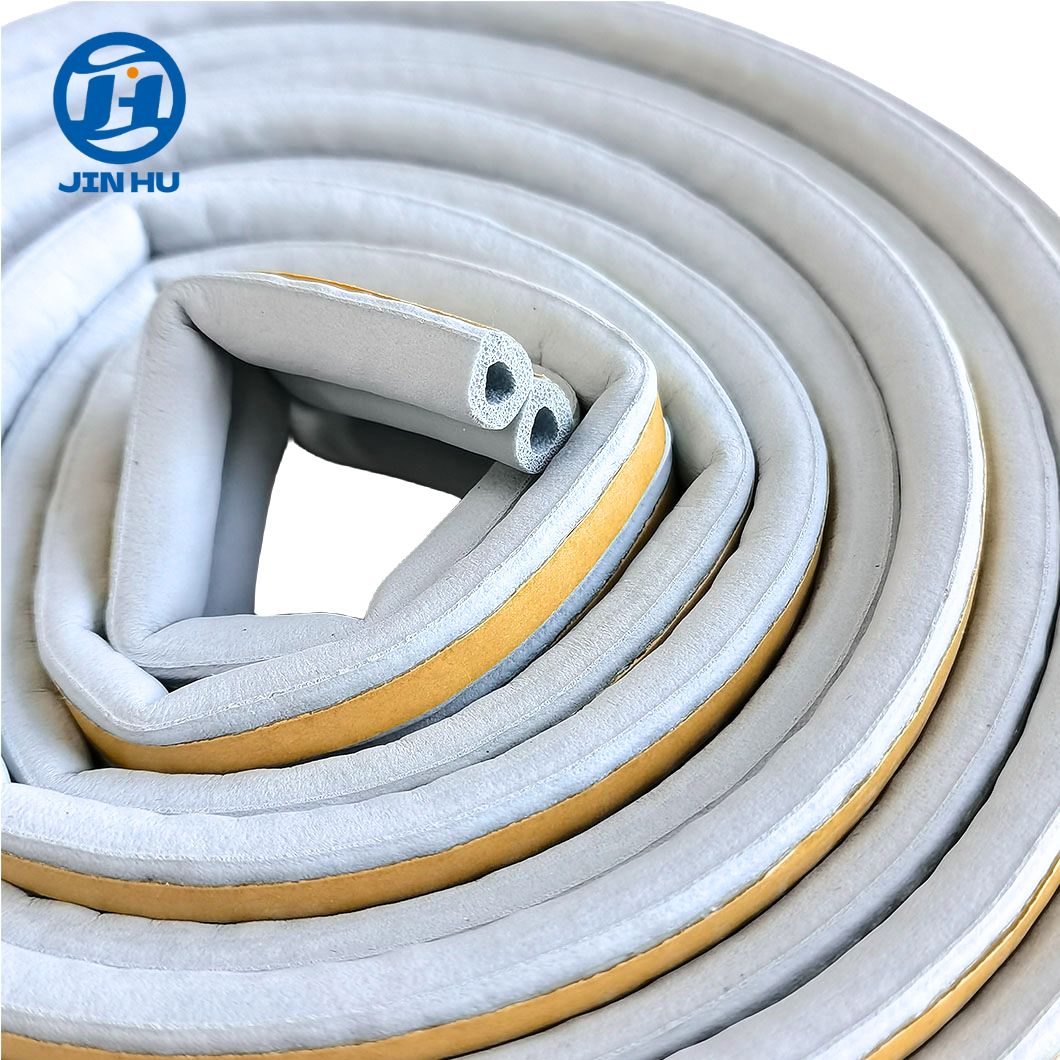

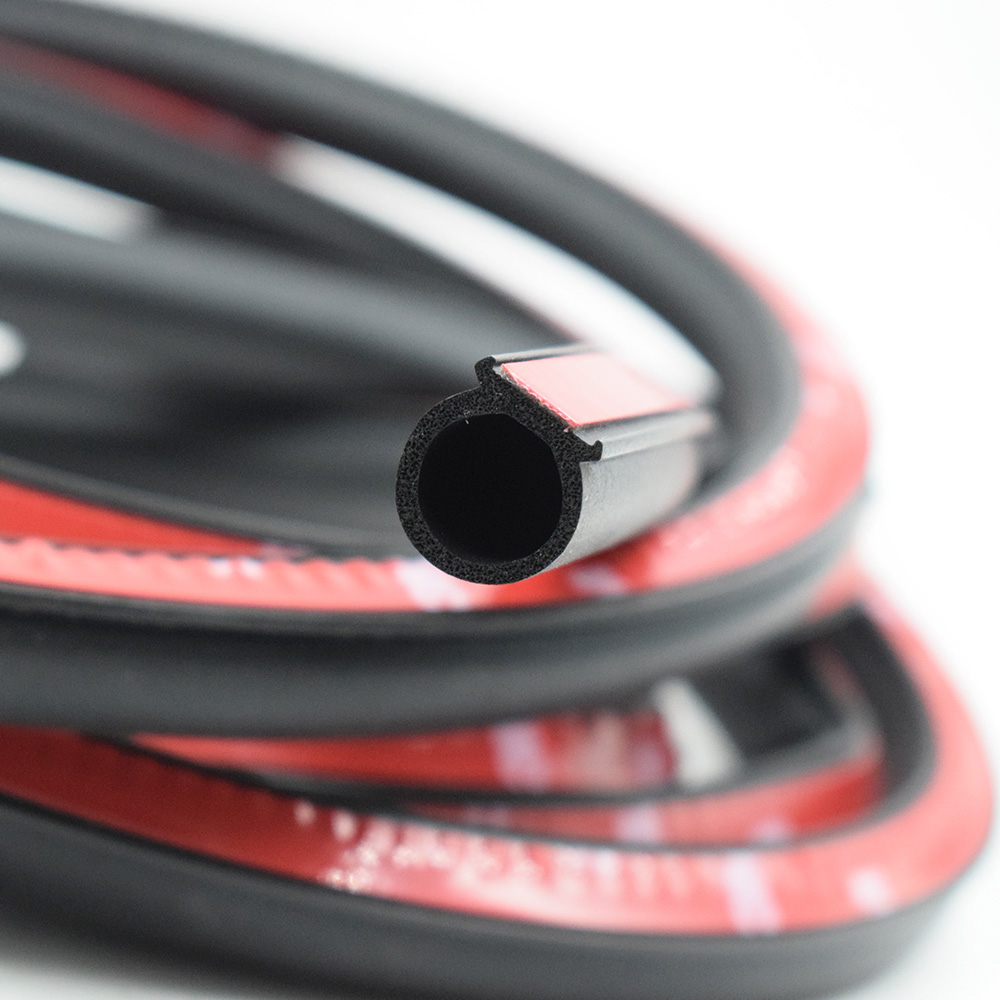

These seal shapes typically have a single and double half-moon structure at the top and a flat surface at the bottom. As the name implies, these seal strips look like single or double bulbs at the cross-section. Most industries aim to use these seal strip shapes for water and chemical resistance.
Advantages:
Applications:
The typical use of bulb seal strips is between the door and the wall, either on the hinge or strike side. These seal strips are also popular in chemical industries, water treatment, food processing, etc.
Seal strips, also known as weather stripping, exhibit an extensive range with hundreds of shapes and sizes, each meticulously designed for specific applications. Every form boasts unique functions and capabilities, addressing distinct sealing requirements. This article endeavors to showcase the most prevalent and widely adopted seal strip shapes found in a myriad of applications.While the focus here is on the most common seal strip shapes, it's important to acknowledge the existence of complex and customized examples. However, these intricate variations have been omitted to maintain the article's relevance to the broader audience interested in the fundamental and widely used seal strip shapes.The next article we will talk about the classification of composite seals
Jinhui is a leading plastic and rubber seal strip manufacturer worldwide. This company manufactures all seal strip shapes and offers customers customized shapes and sizes. The factory’s seal strips are high-quality and long-lasting. Besides, they can also withstand high pressure and temperature. Silicon rubber seal strips are excellent chemical, heat, and electric insulators. This company focuses on all seal strips you may need for any application. You are welcome to consult at any time.
